Butterfly Valves

Supervised butterfly valves used as the main line isolation (control) valve in fixed fire suppression systems

EQUIPMENT

What Is a Butterfly Valve, and Where Is It Used?

A butterfly valve is a quarter-turn valve that stops flow with a disc that rotates around a shaft inside the body. In fixed fire suppression systems, its most common role is as the line isolation (control) valve: on sprinkler risers, zone lines, and pump suction–discharge lines, used to isolate a section during maintenance.

The critical difference in a fire system is that the valve must be supervised. A single control valve left closed by mistake can leave the whole system working on paper but useless in the field; this is why NFPA 13 and TS EN 12845 require system control valves to be either locked in the open position or monitored with a supervisory switch. A butterfly valve fitted with a supervisory switch sends a signal to the fire alarm panel the moment the disc leaves the open position.

The valves we supply in this group are used in water-based suppression systems and foam-based suppression systems.

Selection Criteria

Connection type: threaded connections are used at small diameters (DN25–DN50); grooved connections are standard on riser and zone lines because of installation speed; wafer and lug types are used on flanged lines. The lug type is preferred for end-of-line and equipment isolation because it lets the valve stay in place even when one side of the line is disconnected.
Supervisory switch: any valve used as a system control valve should be specified with a supervisory switch. Types without one are for auxiliary lines that do not require supervision.
Approval scope: the specification your project falls under decides this. UL and FM approvals are sought on NFPA-based projects; VdS approval is sought on CEA/TS EN 12845-based European projects. Not every size of a given model carries the same approvals — check the footnotes in the tables.
Pressure class and size: threaded types are rated up to 12 bar (175 psi); grooved and flanged types up to 21 bar (300 psi) UL/FM or 16 bar (232 psi) VdS. The size range runs from DN25 to DN300.

Models We Supply

We supply the models below for your projects; for the full brand range see Viking fire protection products.

VIKING

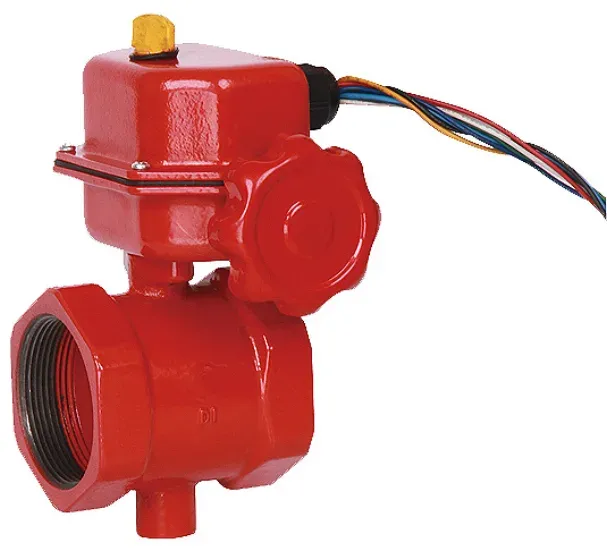

BVT-1 & BVT-2 — Threaded butterfly valve

Approvals: CE, UL, FM
Max. working pressure: 12 bar (175 psi)
Material (body): Cast iron
Sizes: 1” (DN25) – 2” (DN50)
Connection: NPT threaded (BVT-1) / BSP threaded (BVT-2)
Features: With supervisory switch

Part numbers (4)

Size	Part No. (NPT)	Part No. (BSP)
1”/DN25	BVT-1-025	BVT-2-025
1-1/4”/DN32	BVT-1-032	BVT-2-032
1-1/2”/DN40	BVT-1-040	BVT-2-040
2”/DN50	BVT-1-050	BVT-2-050

VIKING

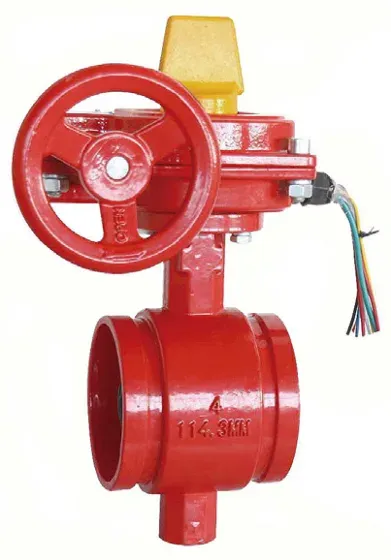

BVG-1 — Grooved butterfly valves with supervisory switch

Approvals: CE, UL, FM, VdS
Max. working pressure: 21 bar (300 psi) UL, FM · 16 bar (232 psi) VdS
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Geared · 2x supervisory switch · Coated disc

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	BVG-1-060
2-1/2”/DN65	73 mm	BVG-1-073*
2-1/2”/DN65	76 mm	BVG-1-076
3”/DN80	89 mm	BVG-1-089
4”/DN100	114 mm	BVG-1-114
5”/DN125	139 mm	BVG-1-139
5”/DN125	141 mm	BVG-1-141*
6”/DN150	165 mm	BVG-1-165*
6”/DN150	168 mm	BVG-1-168
8”/DN200	219 mm	BVG-1-219
10”/DN250	273 mm	BVG-1-273
12”/DN300	324 mm	BVG-1-324

* Not within VdS approval.

VIKING

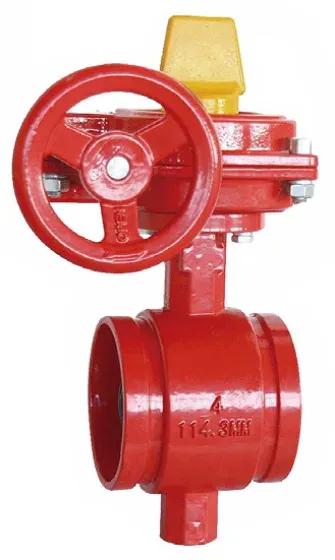

BVG-2 — Grooved butterfly valves with supervisory switch

Approvals: CE, UL, FM, VdS
Max. working pressure: 21 bar (300 psi) UL, FM · 16 bar (232 psi) VdS
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Geared · Coated disc

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	BVG-2-060
2-1/2”/DN65	73 mm	BVG-2-073*
2-1/2”/DN65	76 mm	BVG-2-076
3”/DN80	89 mm	BVG-2-089
4”/DN100	114 mm	BVG-2-114
5”/DN125	139 mm	BVG-2-139
5”/DN125	141 mm	BVG-2-141*
6”/DN150	165 mm	BVG-2-165*
6”/DN150	168 mm	BVG-2-168
8”/DN200	219 mm	BVG-2-219
10”/DN250	273 mm	BVG-2-273
12”/DN300	324 mm	BVG-2-324

* Not within VdS approval.

VIKING

BVG-4 — Grooved butterfly valves with supervisory switch

Approvals: CE
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Geared · 2x supervisory switch · Coated disc

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	BVG-4-060
2-1/2”/DN65	73 mm	BVG-4-073
2-1/2”/DN65	76 mm	BVG-4-076
3”/DN80	89 mm	BVG-4-089
4”/DN100	114 mm	BVG-4-114
5”/DN125	139 mm	BVG-4-139
5”/DN125	141 mm	BVG-4-141
6”/DN150	165 mm	BVG-4-165
6”/DN150	168 mm	BVG-4-168
8”/DN200	219 mm	BVG-4-219
10”/DN250	273 mm	BVG-4-273
12”/DN300	324 mm	BVG-4-324

VIKING

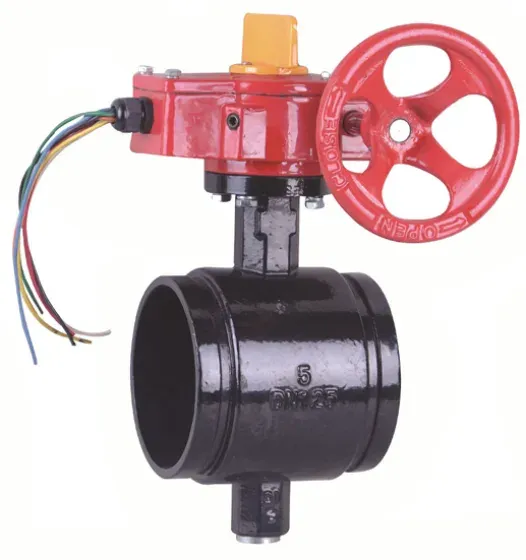

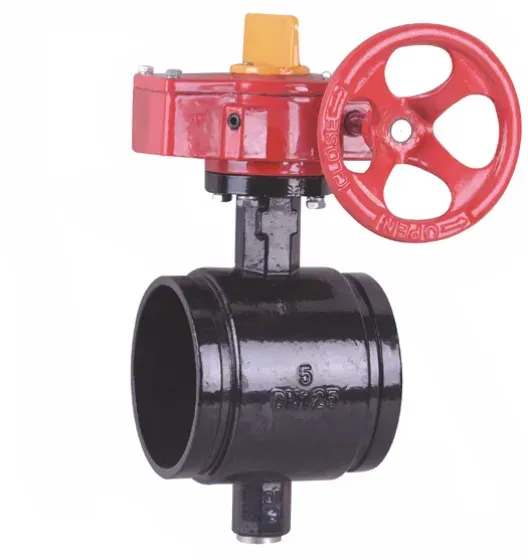

BVG-5 — Grooved butterfly valves with supervisory switch

Approvals: CE
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Geared · Coated disc

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	BVG-5-060
2-1/2”/DN65	73 mm	BVG-5-073
2-1/2”/DN65	76 mm	BVG-5-076
3”/DN80	89 mm	BVG-5-089
4”/DN100	114 mm	BVG-5-114
5”/DN125	139 mm	BVG-5-139
5”/DN125	141 mm	BVG-5-141
6”/DN150	165 mm	BVG-5-165
6”/DN150	168 mm	BVG-5-168
8”/DN200	219 mm	BVG-5-219
10”/DN250	273 mm	BVG-5-273
12”/DN300	324 mm	BVG-5-324

VIKING

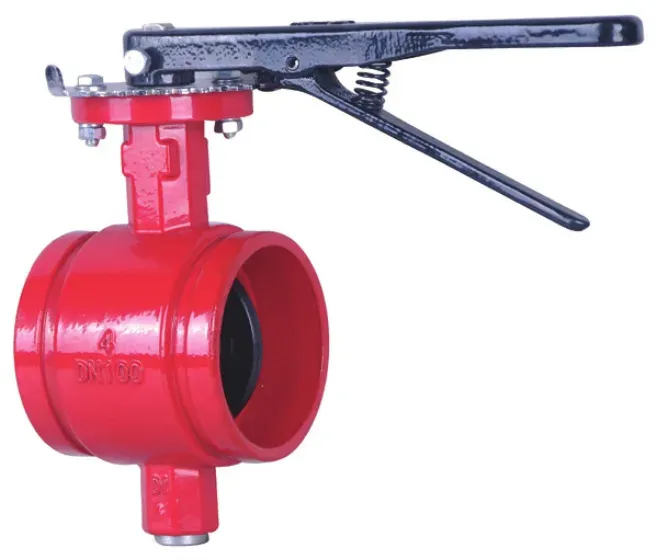

BVG-6 — Grooved butterfly valves without supervisory switch (lever type)

Approvals: CE
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Lever type · Coated disc

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	BVG-6-060
2-1/2”/DN65	73 mm	BVG-6-073
2-1/2”/DN65	76 mm	BVG-6-076
3”/DN80	89 mm	BVG-6-089
4”/DN100	114 mm	BVG-6-114
5”/DN125	139 mm	BVG-6-139
5”/DN125	141 mm	BVG-6-141
6”/DN150	165 mm	BVG-6-165
6”/DN150	168 mm	BVG-6-168
8”/DN200	219 mm	BVG-6-219
10”/DN250	273 mm	BVG-6-273
12”/DN300	324 mm	BVG-6-324

VIKING

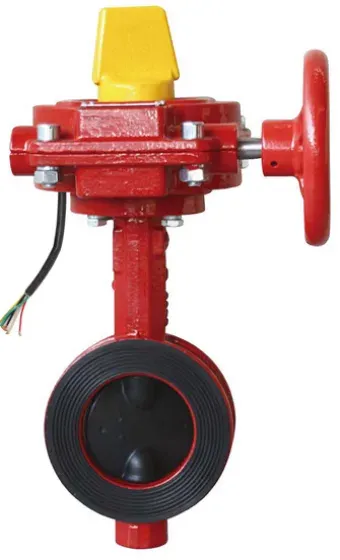

BVW-1 — Wafer-type butterfly valves with supervisory switch

Approvals: CE, UL, FM, VdS
Max. working pressure: See the data sheet for pressure ratings
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Wafer (between flanges)
Features: Geared · 2x supervisory switch · Coated disc

Part numbers (9)

Size	Part No.
2”/DN50	BVW-1-050
2-1/2”/DN65	BVW-1-065
3”/DN80	BVW-1-080
4”/DN100	BVW-1-100
5”/DN125	BVW-1-125
6”/DN150	BVW-1-150
8”/DN200	BVW-1-200
10”/DN250	BVW-1-250
12”/DN300	BVW-1-300

VIKING

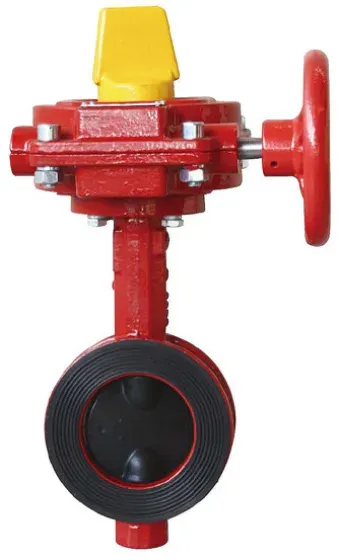

BVW-2 — Wafer-type butterfly valves without supervisory switch

Approvals: CE, UL, FM, VdS
Max. working pressure: See the data sheet for pressure ratings
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Wafer (between flanges)
Features: Geared · Coated disc

Part numbers (9)

Size	Part No.
2”/DN50	BVW-2-050
2-1/2”/DN65	BVW-2-065
3”/DN80	BVW-2-080
4”/DN100	BVW-2-100
5”/DN125	BVW-2-125
6”/DN150	BVW-2-150
8”/DN200	BVW-2-200
10”/DN250	BVW-2-250
12”/DN300	BVW-2-300

VIKING

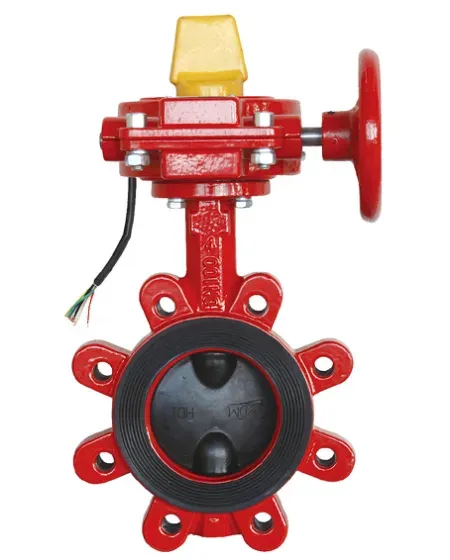

BVL-1 & BVL-2 — Lug-type butterfly valves with supervisory switch

Approvals: CE, UL, FM, VdS
Max. working pressure: See the data sheet for pressure ratings
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Lugged
Features: Geared · 2x supervisory switch · Coated disc

Part numbers (9)

Size	Part No. (PN16)	Part No. (ANSI)
2”/DN50	BVL-1-050P	BVL-2-050A
2-1/2”/DN65	BVL-1-065P	BVL-2-065A
3”/DN80	BVL-1-080P	BVL-2-080A
4”/DN100	BVL-1-100P	BVL-2-100A
5”/DN125	BVL-1-125P	BVL-2-125A
6”/DN150	BVL-1-150P	BVL-2-150A
8”/DN200	BVL-1-200P	BVL-2-200A
10”/DN250	BVL-1-250P	BVL-2-250A
12”/DN300	BVL-1-300P	BVL-2-300A

VIKING

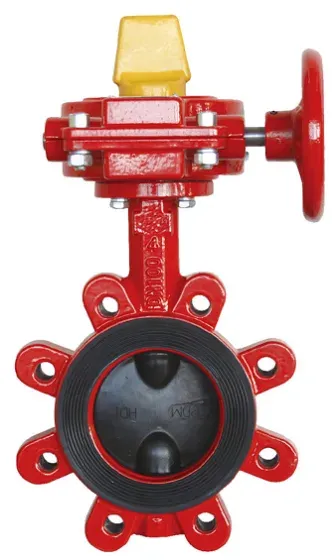

BVL-3 & BVL-4 — Lug-type butterfly valves without supervisory switch

Approvals: CE, UL, FM
Max. working pressure: See the data sheet for pressure ratings
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Lugged
Features: Geared · Coated disc

Part numbers (9)

Size	Part No. (PN16)	Part No. (ANSI)
2”/DN50	BVL-3-050P	BVL-4-050A
2-1/2”/DN65	BVL-3-065P	BVL-4-065A
3”/DN80	BVL-3-080P	BVL-4-080A
4”/DN100	BVL-3-100P	BVL-4-100A
5”/DN125	BVL-3-125P	BVL-4-125A
6”/DN150	BVL-3-150P	BVL-4-150A
8”/DN200	BVL-3-200P	BVL-4-200A
10”/DN250	BVL-3-250P	BVL-4-250A
12”/DN300	BVL-3-300P	BVL-4-300A
