Gate Valves & Post Indicators

Gate valves used as line isolation valves in fixed fire suppression systems, and post indicators that display valve position

EQUIPMENT

What Is a Gate Valve, and Where Is It Used?

A gate valve stops flow with a disc (gate) that moves perpendicular to the flow axis inside the body. Its most common use in fire systems is the same role as a butterfly valve: as the system control (line isolation) valve — used to isolate a section on pump suction–discharge lines and supply risers.

There are two body types. On non-rising stem types, the gate moves inside the body and the stem does not protrude, so the valve’s open/closed position cannot be observed directly — position is monitored electrically with a supervisory switch or mechanically with a post indicator. On rising stem (OS&Y — Outside Screw & Yoke) types, the stem rises out of the body as the valve opens; position is read by eye from the visible stem.

Post-indicator types (PIF, PIG) work together with the non-rising-stem valves used on buried or below-grade lines: the “OPEN” / “SHUT” window on the vertical post makes the stem position visible above ground. NFPA 13 and TS EN 12845 require system control valves to be either locked in the open position or supervised — this group covers the valve and indicator types that meet that requirement.

On buried NRF/NRG-series valves, the position indicator itself must also be brought above ground: a vertical indicator post (IPV) or wall-mounted indicator post (IPW) makes the valve stem’s position visible at ground or wall level with an “OPEN” / “SHUT” indicator. For the same buried installations, we also supply a multi-part valve box (a system of cover, main body, upper section and extension pieces) that protects the PIF/PIG valve’s operating nut from soil contact and backfill. On small branch lines (1/2″–2″ / DN15–DN50), outside the size range of the main OSF/OSG series, the bronze-bodied T104 rising-stem valve is used.

The valves we supply in this group are used in water-based suppression systems, particularly for pump-station and supply-line isolation.

Selection Criteria

Body type: non-rising-stem (NRF/NRG) types suit tight installation spaces and buried lines; rising-stem (OSF/OSG, OS&Y) types are preferred where position needs to be read directly, on above-ground lines.
Connection type: flanged types (NRF, all "F"-series except NRG11) suit flanged pipework; grooved types are common on riser and zone lines because of installation speed.
Supervision: a non-rising-stem valve used as a system control valve must be supervised for position, either with a supervisory-switch bracket or with a post indicator (PIF/PIG series).
Approval scope: the specification your project falls under decides this. UL and FM approvals are sought on NFPA-based projects; VdS approval is sought on CEA/TS EN 12845-based European projects. Not every size of a given model carries the same approvals — check the footnotes in the tables.
Flange class: PN10 and PN16 flanges have different bolt-hole spacing and are not interchangeable. At large sizes (8″ / DN200 and above) the manufacturer publishes separate part numbers for each class; we confirm the correct class at the quotation stage.
Small-diameter lines: on threaded branch lines from 1/2″–2″ / DN15–DN50, below the size range of the main OSF/OSG series, the T104 (bronze-bodied, rising stem) is preferred.

Models We Supply

We supply the models below for your projects; for the full brand range see Viking fire protection products.

VIKING

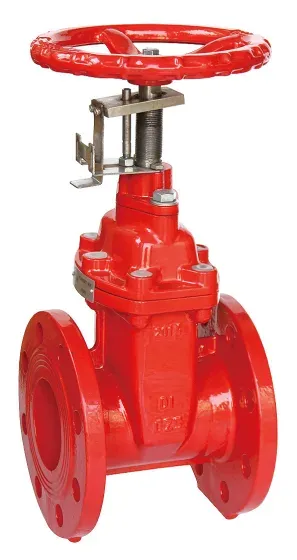

NRF5 — Non-rising stem gate valve (flanged)

Approvals: WRAS
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 14” (DN350)
Connection: Flanged
Features: Epoxy coated · Resilient wedge · Includes position indicator and supervisory switch bracket

Part numbers (23)

Size	Type	Part No.
2”/DN50	ANSI	NRF5-0200W
2”/DN50	PN10/16	NRF5-0200PNW
2-1/2”/DN65	ANSI	NRF5-0250W
2-1/2”/DN65	PN10/16	NRF5-0250PNW
3”/DN80	ANSI	NRF5-0300W
3”/DN80	PN10/16	NRF5-0300PNW
4”/DN100	ANSI	NRF5-0400W
4”/DN100	PN10/16	NRF5-0400PNW
5”/DN125	ANSI	NRF5-0500W
5”/DN125	PN10/16	NRF5-0500PNW
6”/DN150	ANSI/PN10/16	NRF5-0600W
8”/DN200	ANSI	NRF5-0800W
8”/DN200	PN10	NRF5-0800PN10W
8”/DN200	PN16	NRF5-0800PN16W
10”/DN250	ANSI	NRF5-1000W
10”/DN250	PN10	NRF5-1000PN10W
10”/DN250	PN16	NRF5-1000PN16W
12”/DN300	ANSI	NRF5-1200W
12”/DN300	PN10	NRF5-1200PN10W
12”/DN300	PN16	NRF5-1200PN16W
14”/DN350	ANSI	NFR5-1400W
14”/DN350	PN10	NFR5-1400PN10W
14”/DN350	PN16	NFR5-1400PN16W

The 14”/DN350 size (printed as "NFR5-1400" in the source) is not within WRAS approval.

VIKING

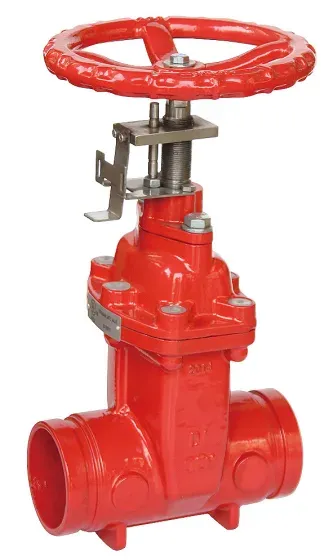

NRG5 — Non-rising stem gate valve (grooved)

Approvals: No approval listed — The source table has no "Approvals" row for this model.
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Epoxy coated · Resilient wedge · Includes position indicator and supervisory switch bracket

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	NRG5-0200
2-1/2”/DN65	73 mm	NRG5-0250-73
2-1/2”/DN65	76 mm	NRG5-0250-76
3”/DN80	89 mm	NRG5-0300
4”/DN100	114 mm	NRG5-0400
5”/DN125	139 mm	NRG5-0500-139
5”/DN125	141 mm	NRG5-0500
6”/DN150	165 mm	NRG5-0600-165
6”/DN150	168 mm	NRG5-0600-168
8”/DN200	219 mm	NRG5-0800
10”/DN250	273 mm	NRG5-1000
12”/DN300	324 mm	NRG5-1200

VIKING

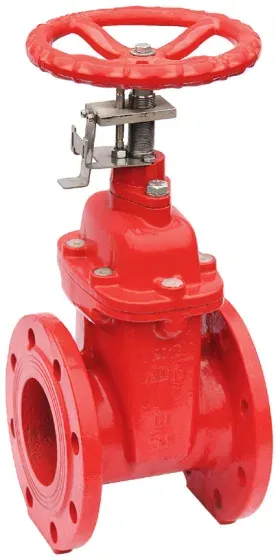

NRF11 — Non-rising stem gate valve (flanged, VdS)

Approvals: VdS
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Flanged
Features: Epoxy coated · Resilient EPDM-coated wedge · Includes position indicator and supervisory switch bracket

Part numbers (12)

Size	Type	Part No.
2”/DN50	PN10/16	NRF11-0200PN
2-1/2”/DN65	PN10/16	NRF11-0250PN
3”/DN80	PN10/16	NRF11-0300PN
4”/DN100	PN10/16	NRF11-0400PN
5”/DN125	PN10/16	NRF11-0500PN
6”/DN150	PN10/16	NRF11-0600
8”/DN200	PN10	NRF11-0800PN10
8”/DN200	PN16	NRF11-0800PN16
10”/DN250	PN10	NRF11-1000PN10
10”/DN250	PN16	NRF11-1000PN16
12”/DN300	PN10	NRF11-1200PN10
12”/DN300	PN16	NRF11-1200PN16

VIKING

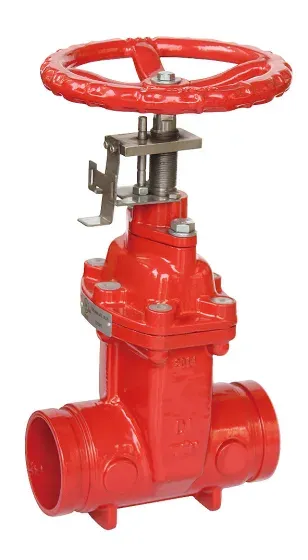

NRG11 — Non-rising stem gate valve (grooved, VdS)

Approvals: VdS
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Epoxy coated · Resilient wedge · Includes position indicator and supervisory switch bracket

Part numbers (11)

Size	Diameter	Part No.
2”/DN50	60 mm	NRG11-0200
2-1/2”/DN65	73 mm	NRG11-0250-73
2-1/2”/DN65	76 mm	NRG11-0250-76
3”/DN80	89 mm	NRG11-0300
4”/DN100	114 mm	NRG11-0400
5”/DN125	139 mm	NRG11-0500-139
6”/DN150	165 mm	NRG11-0600-165
6”/DN150	168 mm	NRG11-0600-168
8”/DN200	219 mm	NRG11-0800
10”/DN250	273 mm	NRG11-1000
12”/DN300	324 mm	NRG11-1200

VIKING

PIF — Post indicator gate valve (flanged)

Approvals: UL, FM
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Flanged
Features: Epoxy coated · Resilient wedge

Part numbers (20)

Size	Type	Part No.
2”/DN50	ANSI	PIF-0200
2”/DN50	PN10/16	PIF-0200PN
2-1/2”/DN65	ANSI	PIF-0250
2-1/2”/DN65	PN10/16	PIF-0250PN
3”/DN80	ANSI	PIF-0300
3”/DN80	PN10/16	PIF-0300PN
4”/DN100	ANSI	PIF-0400
4”/DN100	PN10/16	PIF-0400PN
5”/DN125	ANSI	PIF-0500
5”/DN125	PN10/16	PIF-0500PN
6”/DN150	ANSI/PN10/16	PIF-0600
8”/DN200	ANSI	PIF-0800
8”/DN200	PN10	PIF-0800PN10
8”/DN200	PN16	PIF-0800PN16
10”/DN250	ANSI	PIF-1000
10”/DN250	PN10	PIF-1000PN10
10”/DN250	PN16	PIF-1000PN16
12”/DN300	ANSI	PIF-1200
12”/DN300	PN10	PIF-1200PN10
12”/DN300	PN16	PIF-1200PN16

The 2”/DN50 size is FM approved only; the 5”/DN125 size is UL approved only.

VIKING

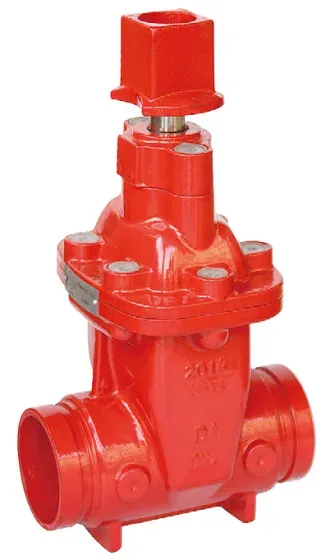

PIG — Post indicator gate valve (grooved)

Approvals: UL, FM
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Epoxy coated · Resilient wedge

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	PIG-0200
2-1/2”/DN65	73 mm	PIG-0250-73
2-1/2”/DN65	76 mm	PIG-0250-76
3”/DN80	89 mm	PIG-0300
4”/DN100	114 mm	PIG-0400
5”/DN125	139 mm	PIG-0500-139
5”/DN125	141 mm	PIG-0500
6”/DN150	165 mm	PIG-0600-165
6”/DN150	168 mm	PIG-0600-168
8”/DN200	219 mm	PIG-0800
10”/DN250	273 mm	PIG-1000
12”/DN300	324 mm	PIG-1200

The 2”/DN50 size is FM approved only; the 5”/DN125 size is UL approved only.

VIKING

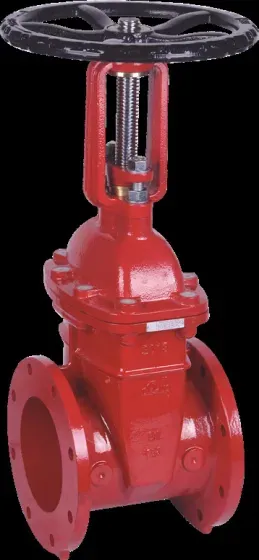

OSF — Rising stem (OS&Y) gate valve (flanged)

Approvals: UL, FM
Max. working pressure: 2”–12”: 21 bar (300 psi) · 14”–24”: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 24” (DN600) — the size range in the table; the source's own "Sizes" line states it as limited to 12”/DN300
Connection: Flanged
Features: Epoxy coated · Resilient wedge

Part numbers (30)

Size	Type	Part No.
2”/DN50	ANSI	OSF-0200
2”/DN50	PN10/16	OSF-0200PN
2-1/2”/DN65	ANSI	OSF-0250
2-1/2”/DN65	PN10/16	OSF-0250PN
3”/DN80	ANSI	OSF-0300
3”/DN80	PN10/16	OSF-0300PN
4”/DN100	ANSI	OSF-0400
4”/DN100	PN10/16	OSF-0400PN
5”/DN125	ANSI	OSF-0500
5”/DN125	PN10/16	OSF-0500PN
6”/DN150	ANSI/PN10/16	OSF-0600
8”/DN200	ANSI	OSF-0800
8”/DN200	PN10	OSF-0800PN10
8”/DN200	PN16	OSF-0800PN16
10”/DN250	ANSI	OSF-1000
10”/DN250	PN10	OSF-1000PN10
10”/DN250	PN16	OSF-1000PN16
12”/DN300	ANSI	OSF-1200
12”/DN300	PN10	OSF-1200PN10
12”/DN300	PN16	OSF-1200PN16
14”/DN350	ANSI	OSF-1400
14”/DN350	PN16	OSF-1400PN16
16”/DN400	ANSI	OSF-1600
16”/DN400	PN16	OSF-1600PN16
18”/DN450	ANSI	OSF-1800
18”/DN450	PN16	OSF-1800PN16
20”/DN500	ANSI	OSF-2000
20”/DN500	PN16	OSF-2000PN16
24”/DN600	ANSI	OSF-2400
24”/DN600	PN16	OSF-2400PN16

The 5”, 14”, 16”, 18”, 20” and 24” sizes are UL approved only (not within FM approval).

VIKING

OSG — Rising stem (OS&Y) gate valve (grooved)

Approvals: UL, FM
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved
Features: Epoxy coated · Resilient wedge

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	OSG-0200
2-1/2”/DN65	73 mm	OSG-0250-73
2-1/2”/DN65	76 mm	OSG-0250-76
3”/DN80	89 mm	OSG-0300
4”/DN100	114 mm	OSG-0400
5”/DN125	139 mm	OSG-0500-139
5”/DN125	141 mm	OSG-0500
6”/DN150	165 mm	OSG-0600-165
6”/DN150	168 mm	OSG-0600-168
8”/DN200	219 mm	OSG-0800
10”/DN250	273 mm	OSG-1000
12”/DN300	324 mm	OSG-1200

VIKING

NRF-SB — Supervisory switch bracket and switch

Approvals: No approval listed — Accessory part — the source table has no "Approvals" row.
Sizes: Used together with NRF5, NRG5, NRF11 and NRG11 series gate valves

Part numbers (2)

Component	Part No.
İzleme anahtarı braketi	NRF-SB
İzleme anahtarı	828482

VIKING

NRK-0800 — T-wrench for post indicator gate valves

Approvals: No approval listed — Accessory part — the source table has no "Approvals" row.
Sizes: Used together with PIF and PIG series post indicator gate valves

Part numbers (1)

Length	Part No.
800 mm	NRK-0800

VIKING

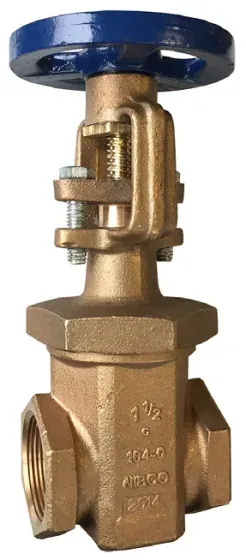

T104 — Rising stem (OS&Y) gate valve — threaded, bronze body

Approvals: UL, FM
Max. working pressure: 15 bar (175 psi)
Material (body): Bronze
Sizes: 1/2” (DN15) – 2” (DN50)
Connection: NPT threaded

Part numbers (6)

Size	Part No.
1/2”/DN15	T1040050
3/4”/DN20	T1040075
1”/DN25	T1040100
1-1/4”/DN32	T1040125
1-1/2”/DN40	T1040150
2”/DN50	T1040200

VIKING

IPV — Vertical indicator post

Approvals: UL, FM
Material (body): Cast iron
Sizes: Used together with PIF and PIG series post indicator gate valves
Features: Epoxy coated · 850 mm adjustment range · "Open" and "Closed" position indicator

Part numbers (1)

Component	Part No.
Dikey indikatör postu	IPV

VIKING

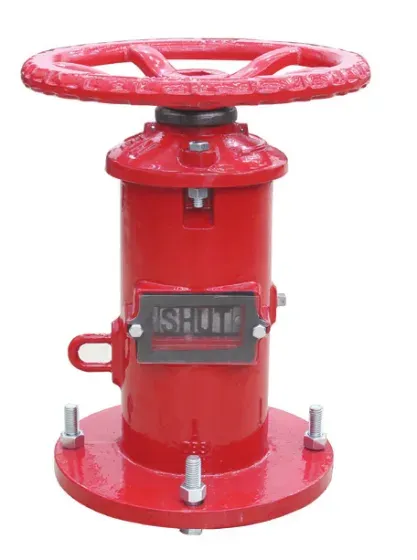

IPW — Wall-type indicator post

Approvals: UL, FM
Material (body): Cast iron
Sizes: Used together with PIF and PIG series post indicator gate valves
Features: Epoxy coated | handwheel · "Open" and "Closed" position indicator · Supplied at 1 m

Part numbers (1)

Component	Part No.
Duvar tipi indikatör postu	IPW

VIKING

Buşakle Kutusu Ana Parçası — Buried valve box main section (buried valve box body)

Approvals: UL, FM
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300) — the size of the PIF/PIG valve it is fitted to
Connection: Grooved
Features: Epoxy coated · Resilient wedge

Part numbers (2)

Size	Part No.
2”/DN50 – 10”/DN250	CUL5BA6
12”/DN300	CUL5BA160

Approval scope depends on the size of the valve it is fitted to: the 2”/DN50 size is FM approved only; the 5”/DN125 size is UL approved only (see the PIF/PIG tables).

VIKING

CC05LWSQ — Buried valve box cover — square

Approvals: UL, FM
Material (body): Cast iron
Sizes: Used together with CUL5BA6 / CUL5BA160 main sections

Part numbers (1)

Type	Part No.
Kare	CC05LWSQ

VIKING

Buşakle Kutusu Kapağı — Yuvarlak — Buried valve box cover — round types

Approvals: UL, FM
Material (body): Cast iron
Sizes: Used together with CUL5BA6 / CUL5BA160 main sections

Part numbers (2)

Type	Size	Part No.
Yuvarlak, kilitlenebilir		CUL5LWL
Yuvarlak	1-1/2”/DN40	CUL5LWRD

VIKING

Buşakle Kutusu Üst Bölümü — Buried valve box upper section — screw type

Approvals: UL, FM
Material (body): Cast iron
Sizes: Length: 432 mm (all variants) — used together with CUL5BA6 / CUL5BA160 main sections

Part numbers (6)

Type	Part No.
Vidalı - #53	CUL5T53B
Vidalı - #54	CUL5T54B
Vidalı - #55	CUL5T55B
Vidalı - #55	CUL5T55S
Vidalı - #56	CUL5T56B
Vidalı - #56	CUL5T56S

VIKING

Buşakle Kutusu İlave Uzatma Parçası — Buried valve box additional extension section

Approvals: UL, FM
Material (body): Cast iron
Sizes: Used together with CUL5BA6 / CUL5BA160 main sections

Part numbers (10)

Length	Type	Part No.
229 mm	Vidalı	I5E57
356 mm	Vidalı	I5E58
508 mm	Vidalı	I5E59
510 mm	Vidalı	I5E60
762 mm	Vidalı	I5E61
229 mm	Sürgülü	I5E63E
356 mm	Sürgülü	I5E64E
508 mm	Sürgülü	I5E65E
510 mm	Sürgülü	I5E66E
762 mm	Sürgülü	I5E67E

VIKING

Buşakle Kutusu Orta Kısmı — Buried valve box middle section

Approvals: UL, FM
Material (body): Cast iron
Sizes: Used together with CUL5BA6 / CUL5BA160 main sections

Part numbers (9)

Length	Type	Part No.
559-711 mm	Vidalı	I5M60B
711-1.016 mm	Vidalı	I5M61B
914-1.219 mm	Vidalı	I5M62B
1.067-1.372 mm	Vidalı	I5M63B
1.219-1.524 mm	Vidalı	I5M64B
711-1.016 mm	Sürgülü	I5M61S
914-1.219 mm	Sürgülü	I5M62S
1.067-1.372 mm	Sürgülü	I5M63S
1.219-1.524 mm	Sürgülü	I5M64S

Request a Quote for Your Project

Tell us the line diameter, connection type, flange class and approval scope you need; we'll work out the right model together.

Request a Quote
