Check Valves

Check valves that let fluid pass in one direction only and prevent backflow — in threaded, grooved, wafer and swing-check types

EQUIPMENT

What Is a Check Valve, and Where Is It Used?

A check valve is a valve on a line that lets fluid pass in one direction only, closing automatically against reverse flow. Its most common uses in fixed fire suppression systems are pump discharge and supply lines: when the pump stops or supply pressure drops, it prevents water in the system from flowing back, cutting off backflow at the points where the mains and the fire line connect.

The models in this group fall into two basic operating principles: spring-loaded types (in-line mounted, able to operate in any orientation) and swing types (with a clapper, closed by weight or a spring, with mounting restrictions that vary from model to model). Wafer (double-door) types are clamped between two flanges and offer a more compact solution at large diameters.

The valves we supply in this group are used in water-based suppression systems, foam-based suppression systems and fire hydrant lines.

Selection Criteria

Connection type: threaded connections are common at small diameters (DN8–DN50); grooved connections are preferred on riser and zone lines because of installation speed; flanged and wafer (double-door) types are used on large-diameter mains and at pump stations.
Mounting orientation: spring-loaded in-line models can operate on horizontal or vertical lines; some swing (clapper) types are suited to horizontal mounting only — confirm the model's mounting restriction before selecting.
Approval scope: the specification your project falls under decides this. UL and FM approvals are sought on NFPA-based projects; VdS approval is sought on CEA/TS EN 12845-based European projects. Some models in this group (small bronze types, the 635E and the DDW) carry no approval information in the source catalogue; these models suit general-purpose/OEM lines.
Pressure class and size: threaded bronze types are rated from 14–28 bar (200–400 psi); grooved and flanged cast-iron types are typically rated up to 16–21 bar (232–300 psi). The size range runs from DN8 to DN400.

Models We Supply

We supply the models below for your projects; for the full brand range see Viking fire protection products.

VIKING

04947A — Spring-loaded in-line check valve - threaded

Approvals: No approval listed — The source catalogue has no approval information (Approvals row) for this model.
Max. working pressure: 28 bar (400 psi)
Material (body): Bronze
Sizes: 1/4” (DN8) - 3/4” (DN20)
Connection: Threaded

Part numbers (3)

Size	Type	Part Number
1/4”/DN8	NPT/BSP	04947A
1/2”/DN15	NPT/BSP	08431
3/4”/DN20	NPT/BSP	10870

VIKING

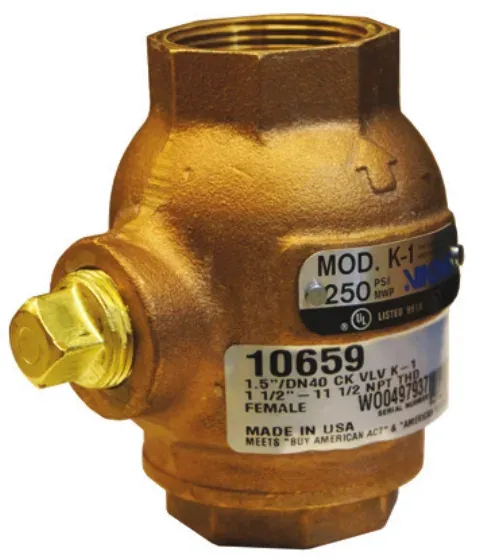

K-1 — Spring-loaded in-line check valve - threaded

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Bronze
Sizes: 1-1/2” (DN40) - 2” (DN50)
Connection: Threaded

Part numbers (2)

Size	Type	Part Number
1-1/2”/DN40	NPT	10659
2”/DN50	NPT	10667

VIKING

NRV004SPRING — Spring-loaded in-line check valve - threaded

Approvals: No approval listed — The source catalogue has no approval information (Approvals row) for this model.
Max. working pressure: 16 bar (232 psi)
Material (body): Bronze
Sizes: 1/2” (DN15) - 2” (DN50)
Connection: Threaded

Part numbers (6)

Size	Type	Part Number
1/2”/DN15	BSP/NPT	NRV004SPRING015H
3/4”/DN20	BSP/NPT	NRV004SPRING020H
1”/DN25	BSP	NRV004SPRING025H
1-1/4”/DN32	BSP	NRV004SPRING032H
1-1/2”/DN40	BSP	NRV004SPRING040H
2”/DN50	BSP	NRV004SPRING050H

VIKING

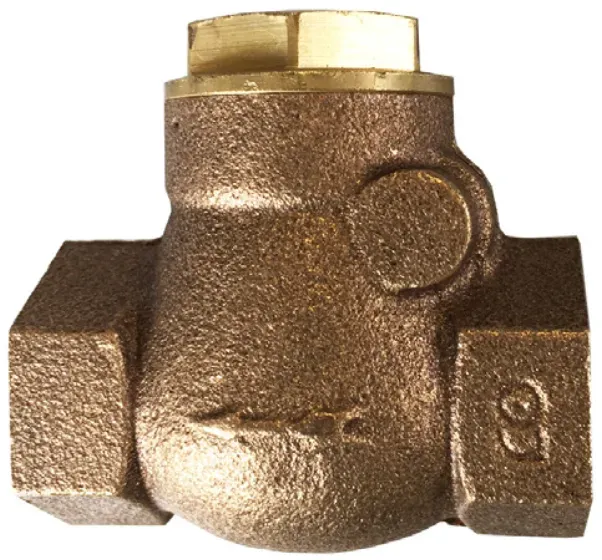

NRV004 — Swing check valve - threaded

Approvals: No approval listed — The source catalogue has no approval information (Approvals row) for this model.
Max. working pressure: 16 bar (232 psi)
Material (body): Bronze
Sizes: 1/2” (DN15) - 2” (DN50)
Connection: Threaded

Part numbers (5)

Size	Type	Part Number
1/2”/DN15	BSP/NPT	NRV004015H
3/4”/DN20	BSP/NPT	NRV004020H
1”/DN25	BSP	NRV004025H
1-1/4”/DN32	BSP	NRV004032H
2”/DN50	BSP	NRV004050H

VIKING

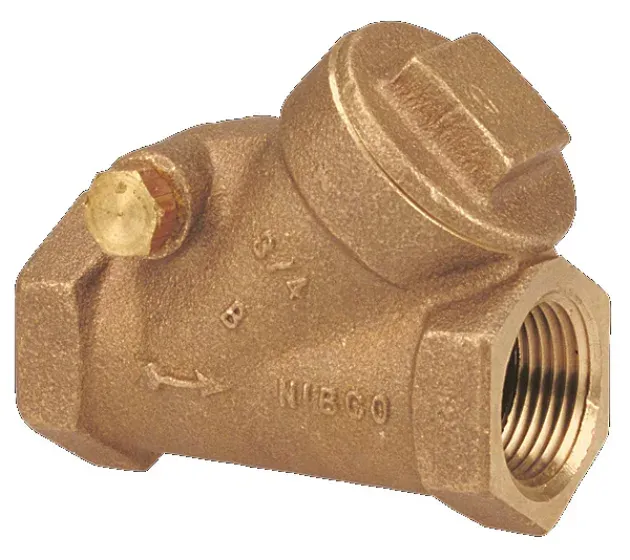

KT403W — Swing check valve - threaded

Approvals: No approval listed — The source catalogue has no approval information (Approvals row) for this model.
Max. working pressure: 14 bar (200 psi)
Material (body): Bronze
Sizes: 1/2” (DN15) - 2” (DN50)
Connection: Threaded

Part numbers (6)

Size	Type	Part Number
1/2”/DN15	BSP/NPT	KT403W050
3/4”/DN20	BSP/NPT	KT403W075
1”/DN25	NPT	KT403W100
1-1/4”/DN32	NPT	KT403W125
1-1/2”/DN40	NPT	KT403W150
2”/DN50	NPT	KT403W200

VIKING

SCF — Swing check valve - flanged

Approvals: UL, FM
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) - 12” (DN300)
Connection: Flanged
Features: Epoxy coated

Part numbers (20)

Size	Type	Part Number
2”/DN50	ANSI	SCF-0200
2”/DN50	PN10/16	SCF-0200PN
2-1/2”/DN65	ANSI	SCF-0250
2-1/2”/DN65	PN10/16	SCF-0250PN
3”/DN80	ANSI	SCF-0300
3”/DN80	PN10/16	SCF-0300PN
4”/DN100	ANSI	SCF-0400
4”/DN100	PN10/16	SCF-0400PN
5”/DN125	ANSI	SCF-0500
5”/DN125	PN10/16	SCF-0500PN
6”/DN150	ANSI/PN10/16	SCF-0600
8”/DN200	ANSI	SCF-0800
8”/DN200	PN10	SCF-0800PN10
8”/DN200	PN16	SCF-0800PN16
10”/DN250	ANSI	SCF-1000
10”/DN250	PN10	SCF-1000PN10
10”/DN250	PN16	SCF-1000PN16
12”/DN300	ANSI	SCF-1200
12”/DN300	PN10	SCF-1200PN10
12”/DN300	PN16	SCF-1200PN16

VIKING

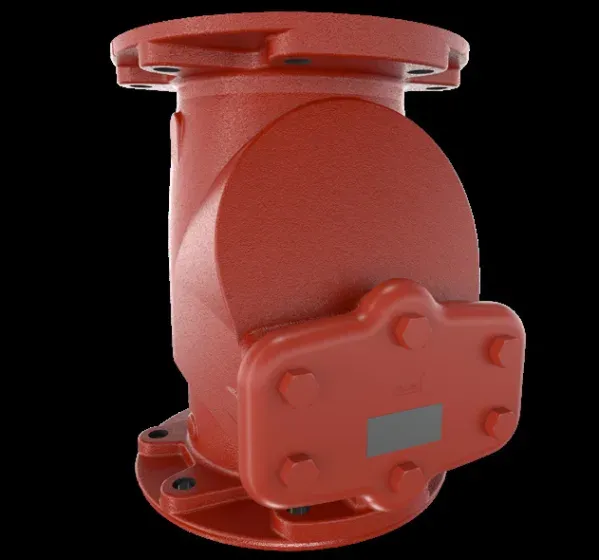

G-1 — Swing check valve - flanged

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 4” (DN100) - 8” (DN200)
Connection: Flanged
Features: Epoxy coated

Part numbers (6)

Size	Type	Part Number
4”/DN100	ANSI	08538
6”/DN150	ANSI	08542
8”/DN200	ANSI	08546
4”/DN100	PN10/16	08858
6”/DN150	PN10/16	08835
8”/DN200	PN10	08860

VIKING

RMX — Swing check valve - flanged

Approvals: FM, VdS
Max. working pressure: 16 bar (232 psi) PN16 · 10 bar (140 psi) PN10
Material (body): Cast iron
Sizes: 3” (DN80) - 8” (DN200)
Connection: Flanged

Part numbers (5)

Size	Type	Part Number
3”/DN80	PN16	840786
4”/DN100	PN16	840787
6”/DN150	PN16	840789
8”/DN200	PN10	840791
8”/DN200	PN16	840792

VIKING

L-1 — Spring-loaded in-line check valve - grooved

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Bronze
Sizes: 1-1/2” (DN40) - 2” (DN50)
Connection: Grooved

Part numbers (2)

Size	Diameter	Part Number
1-1/2”/DN40	48 mm	11054
2”/DN50	60 mm	11059

VIKING

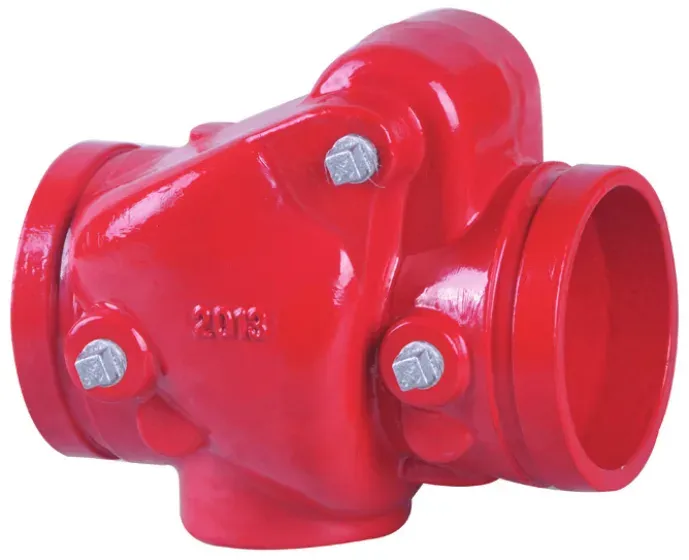

SCG — Swing check valve - grooved

Approvals: UL, FM
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) - 12” (DN300)
Connection: Grooved
Features: Epoxy coated

Part numbers (10)

Size	Diameter	Part Number
2”/DN50	60 mm	SCG-0200
2-1/2”/DN65	73 mm	SCG-0250-73
2-1/2”/DN65	76 mm	SCG-0250-76
3”/DN80	89 mm	SCG-0300
4”/DN100	114 mm	SCG-0400
6”/DN150	165 mm	SCG-0600-165
6”/DN150	168 mm	SCG-0600-168
8”/DN200	219 mm	SCG-0800
10”/DN250	273 mm	SCG-1000
12”/DN300	324 mm	SCG-1200

VIKING

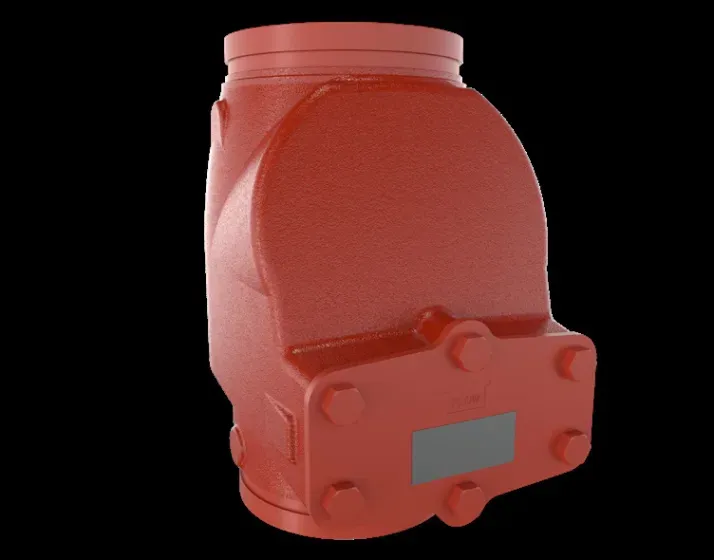

D-1/G-1 — Swing check valve - grooved

Approvals: UL, FM
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2-1/2” (DN65) - 8” (DN200)
Connection: Grooved

Part numbers (6)

Size	Diameter	Part Number
2-1/2”/DN65	73 mm	05497C
2-1/2”/DN65	76 mm	09568
3”/DN80	89 mm	08536
4”/DN100	114 mm	08539
6”/DN150	168 mm	08543
8”/DN200	219 mm	08547

VIKING

E-1/F-1 — Easy Riser® swing check valve - grooved

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 2-1/2” (DN65) - 8” (DN200)
Connection: Grooved

Part numbers (7)

Size	Diameter	Part Number
2-1/2”/DN65	73 mm	07929
2-1/2”/DN65	76 mm	13516
3”/DN80	89 mm	08507
4”/DN100	114 mm	08510
6”/DN150	165 mm	12356
6”/DN150	168 mm	08513
8”/DN200	219 mm	08516

VIKING

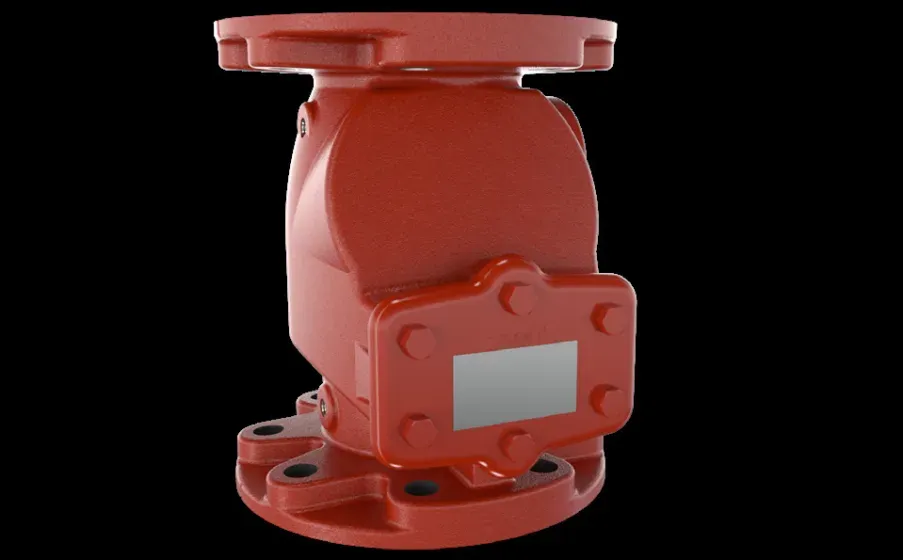

E-1/F-1 — Easy Riser® swing check valve - flanged

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 3” (DN80) - 8” (DN200)
Connection: Flanged

Part numbers (8)

Size	Type	Part Number
3”/DN80	ANSI	08505
3”/DN80	PN10/16	08796
4”/DN100	ANSI	08508
4”/DN100	PN10/16	08797
6”/DN150	ANSI/PN10/16	08511
8”/DN200	ANSI	14023
8”/DN200	PN10	08836
8”/DN200	PN16	12355

VIKING

M-2 — Swing check valve - grooved

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 4” (DN100)
Connection: Grooved

Part numbers (1)

Size	Diameter	Part Number
4”/DN100	114 mm	22550

VIKING

RMX — Swing check valve - grooved

Approvals: FM, VdS
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 3” (DN80) - 8” (DN200)
Connection: Grooved

Part numbers (4)

Size	Diameter	Part Number
3”/DN80	89 mm	845367
4”/DN100	114 mm	845368
6”/DN150	168 mm	845369
8”/DN200	219 mm	845370

VIKING

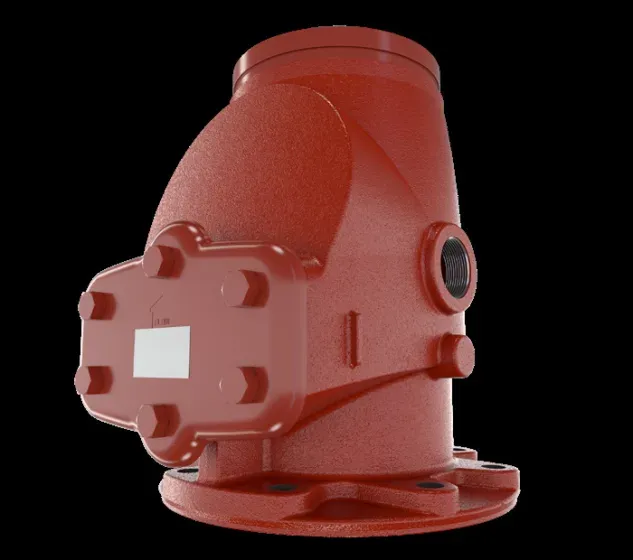

E-1/F-1 — Easy Riser® swing check valve - flange-coupling

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 3” (DN80) - 8” (DN200)
Connection: Flange-coupling

Part numbers (8)

Size	Diameter	Type	Part Number
3”/DN80	89 mm	ANSI	08506
3”/DN80	89 mm	PN10/16	12648
4”/DN100	114 mm	ANSI	08509
4”/DN100	114 mm	PN10/16	12649
6”/DN150	165 mm	ANSI/PN10/16	12652
6”/DN150	168 mm	ANSI/PN10/16	08512
8”/DN200	219 mm	ANSI	08515
8”/DN200	219 mm	PN16	12650

VIKING

DDW — Double-disc check valve - wafer type

Approvals: No approval listed — The source catalogue has no approval information (Approvals row) for this model.
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 2” (DN50) - 12” (DN300)
Connection: Flanged (wafer type, between flanges)
Features: Epoxy coated

Part numbers (9)

Size	Type	Part Number
2”/DN50	PN10/16	DDW-0200PN
2-1/2”/DN65	PN10/16	DDW-0250PN
3”/DN80	PN10/16	DDW-0300PN
4”/DN100	PN10/16	DDW-0400PN
5”/DN125	PN10/16	DDW-0500PN
6”/DN150	PN10/16	DDW-0600
8”/DN200	PN10	DDW-0800PN16
10”/DN250	PN10	DDW-1000PN16
12”/DN300	PN10	DDW-1200PN16

The source catalogue prints the Type column as "PN10" for the 8”/10”/12” (DN200/250/300) rows while the part number ends "...PN16"; both values are carried exactly as printed in the source — the part number is what governs ordering.

VIKING

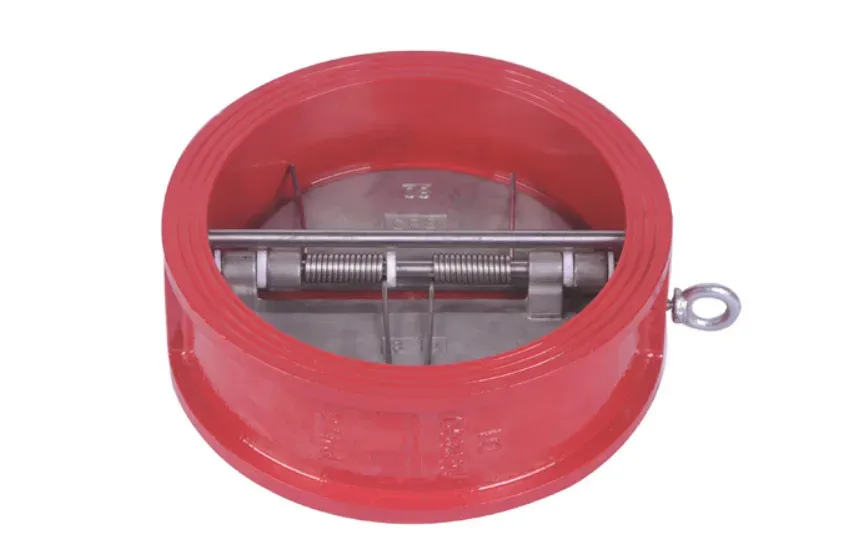

DDC — Double-disc check valve - wafer type

Approvals: UL
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) - 16” (DN400)
Connection: Flanged (wafer type, between flanges)
Features: Epoxy coated

Part numbers (11)

Size	Type	Part Number
2”/DN50	PN16	DDC-0200
2-1/2”/DN65	PN16	DDC-0250
3”/DN80	PN16	DDC-0300
4”/DN100	PN16	DDC-0400
5”/DN125	PN16	DDC-0500
6”/DN150	PN16	DDC-0600
8”/DN200	PN16	DDC-0800
10”/DN250	PN16	DDC-1000
12”/DN300	PN16	DDC-1200
14”/DN350	PN16	DDC-1400
16”/DN400	PN16	DDC-1600

VIKING

KW900W — Double-disc check valve - wafer type

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 2-1/2” (DN65) - 14” (DN350)
Connection: Flanged (wafer type, between flanges)
Features: Lead-free brass

Part numbers (8)

Size	Type	Part Number
2-1/2”/DN65	ANSI	KW900W0250LF
3”/DN80	ANSI	KW900W0300LF
4”/DN100	ANSI	KW900W0400LF
6”/DN150	ANSI	KW900W0600LF
8”/DN200	ANSI/PN	KW900W0800LF
10”/DN250	ANSI/PN	KW900W1000LF
12”/DN300	ANSI/PN	KW900W1200LF
14”/DN350	ANSI/PN	KW900W1400LF

VIKING

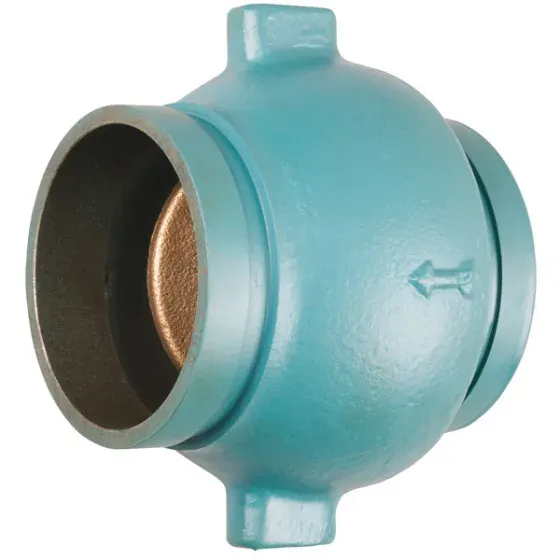

KG900W — Double-disc check valve - grooved

Approvals: UL, FM
Max. working pressure: 17 bar (250 psi)
Material (body): Cast iron
Sizes: 3” (DN80) - 12” (DN300)
Connection: Grooved
Features: Lead-free brass

Part numbers (6)

Size	Diameter	Part Number
3”/DN80	89 mm	KG900W0300LF
4”/DN100	114 mm	KG900W0400LF
6”/DN150	168 mm	KG900W0600LF
8”/DN200	219 mm	KG900W0800LF
10”/DN250	273 mm	KG900W1000LF
12”/DN300	324 mm	KG900W1200LF

VIKING

635E — Extra-flat check valve - wafer type

Approvals: No approval listed — The source catalogue has no approval information (Approvals row) for this model.
Max. working pressure: 16 bar (232 psi) DN50-DN150 · 10 bar (140 psi) DN200
Material (body): Steel
Sizes: 2” (DN50) - 8” (DN200)
Connection: Wafer type (between flanges)

Part numbers (7)

Size	Type	Part Number
2”/DN50	PN10/16	635E050
2-1/2”/DN65	PN10/16	635E065
3”/DN80	PN10/16	635E080
4”/DN100	PN10/16	635E100
5”/DN125	PN10/16	635E125
6”/DN150	PN10/16	635E150
8”/DN200	PN10/16	635E200

Request a Quote for Your Project

Tell us the line diameter, connection type and approval scope you need; we'll work out the right model together.

Request a Quote
