Strainers

Y-type and basket-type line strainers — threaded, grooved and flanged connections, UL/VdS-approved Viking models

EQUIPMENT

What Is a Strainer, and Where Is It Used?

A strainer (line filter/screen) protects downstream equipment by trapping rust, weld slag and other solid particles carried in the water inside a screened body. In fixed fire suppression systems its most critical role is protecting control valves, check valves and pressure-reducing valves from foreign matter that could damage sealing surfaces or wear a gasket or seat; most valve and regulator manufacturers require a line strainer immediately upstream of their product for that reason.

Body style follows the mounting location: Y-type bodies (YSF, YSG) are fitted on straight runs and operate with low pressure loss; basket-type bodies (595, GH2, SH-G) offer a larger filtering surface and are typically preferred on pump suction lines and large-diameter supply mains.

The equipment we supply in this group complements water-based suppression system, foam-based suppression system and dry riser equipment lines.

Selection Criteria

Connection type: threaded basket-type strainers at small diameters (DN15–DN20); grooved (YSG) or flanged (YSF) Y-type strainers from DN50–DN300. The connection type should match the connection standard of the line the strainer is fitted to.
Mesh size: chosen to match the sensitivity of the equipment being protected — the GH2 series offers 5.6 mm (coarse), 2.5 mm and 1.0 mm (fine) mesh options; a finer mesh requires more frequent cleaning.
Approval scope: the specification your project falls under decides this. The YSF and YSG are UL approved; the GH2 series holds VdS approval and SVGW approval for drinking water; the 595 series is UL and FM approved.
Pressure class and size: threaded basket-type strainers are rated up to 16.5 bar; flanged/grooved Y-type strainers up to 21 bar (300 psi UL). The size range runs from DN15 to DN300.
Service access: basket-type bodies carry a bolted top cover so the screen basket can be removed and cleaned; on lines with a planned cleaning schedule, this access matters for selection.

Models We Supply

We supply the models below for your projects; for the full brand range see Viking fire protection products.

VIKING

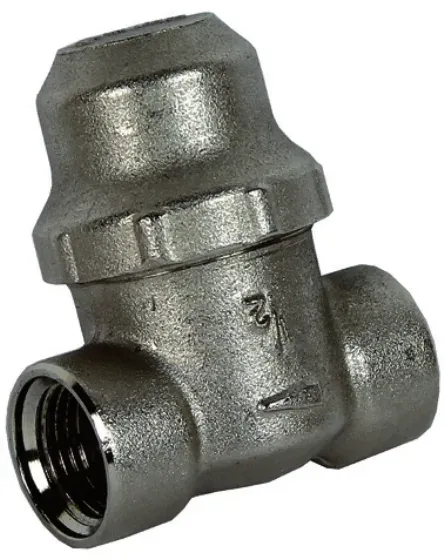

Sepet Tipi Pislik Tutuc (Dişli) — Basket-type strainer — threaded connection

Approvals: No approval listed — The source catalogue page has no "Approvals" row for this model.
Material (body): Brass
Sizes: 1/2” (DN15), 3/4” (DN20)
Connection: Threaded

Part numbers (3)

Size	Connection	Type	Screen (mm)	Part No.
1/2”/DN15	Dişli	BSP	0,3	848271
1/2”/DN15	Dişli	BSP	0,8	880056
3/4”/DN20	Dişli	BSP	0,8	843310

VIKING

YSF — YSF Y-type strainer — flanged

Approvals: UL
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Flanged

Part numbers (15)

Size	Type	Part No.
2”/DN50	ANSI	YSF-0200
2”/DN50	PN10/16	YSF-0200PN
2-1/2”/DN65	ANSI	YSF-0250
2-1/2”/DN65	PN10/16	YSF-0250PN
3”/DN80	ANSI	YSF-0300
3”/DN80	PN10/16	YSF-0300PN
4”/DN100	ANSI	YSF-0400
4”/DN100	PN10/16	YSF-0400PN
6”/DN150	ANSI/PN10/PN16	YSF-0600
8”/DN200	ANSI	YSF-0800
8”/DN200	PN16	YSF-0800PN16
10”/DN250	ANSI	YSF-1000
10”/DN250	PN16	YSF-1000PN16
12”/DN300	ANSI	YSF-1200
12”/DN300	PN16	YSF-1200PN16

VIKING

YSG — YSG Y-type strainer — grooved

Approvals: UL
Max. working pressure: 21 bar (300 psi)
Material (body): Cast iron
Sizes: 2” (DN50) – 12” (DN300)
Connection: Grooved

Part numbers (12)

Size	Diameter	Part No.
2”/DN50	60 mm	YSG-0200
2-1/2”/DN65	73 mm	YSG-0250-073
2-1/2”/DN65	76 mm	YSG-0250-076
3”/DN80	89 mm	YSG-0300
4”/DN100	114 mm	YSG-0400
5”/DN125	139 mm	YSG-0500-139
5”/DN125	141 mm	YSG-0500-141
6”/DN150	165 mm	YSG-0600-165
6”/DN150	168 mm	YSG-0600-168
8”/DN200	219 mm	YSG-0800
10”/DN250	273 mm	YSG-1000
12”/DN300	324 mm	YSG-1200

VIKING

595 — 595 basket-type strainer — flanged

Approvals: UL, FM
Max. working pressure: 12 bar (175 psi)
Material (body): Cast iron
Sizes: 4” (DN100) – 12” (DN300)
Connection: Flanged
Features: Stainless steel filter

Part numbers (5)

Size	Connection	Type	Part No.
4”/DN100	Flanşlı	ANSI	5950400
6”/DN150	Flanşlı	ANSI	5950600
8”/DN200	Flanşlı	ANSI	5950800
10”/DN250	Flanşlı	ANSI	5951000
12”/DN300	Flanşlı	ANSI	5951200

VIKING

GH2-G-TW — GH2-G-TW basket-type strainer — flanged (coarse filter)

Approvals: VdS, SVGW
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 3” (DN80) – 8” (DN200)
Connection: Flanged
Features: 5.6 mm filter (coarse filter) · Traffic blue RAL5017

Part numbers (4)

Size	Connection	Type	Filter	Part No.
3”/DN80	Flanşlı	PN16	5,6 mm	843223
4”/DN100	Flanşlı	PN16	5,6 mm	843225
6”/DN150	Flanşlı	PN16	5,6 mm	843227
8”/DN200	Flanşlı	PN16	5,6 mm	845967

VIKING

GH2-F-TW — GH2-F-TW basket-type strainer — flanged (fine filter)

Approvals: VdS, SVGW
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 3” (DN80) – 8” (DN200)
Connection: Flanged
Features: 2.5 mm filter (fine filter) · Traffic blue RAL5017

Part numbers (4)

Size	Connection	Type	Filter	Part No.
3”/DN80	Flanşlı	PN16	2,5 mm	843224
4”/DN100	Flanşlı	PN16	2,5 mm	843226
6”/DN150	Flanşlı	PN16	2,5 mm	843228
8”/DN200	Flanşlı	PN16	2,5 mm	845968

VIKING

GH2-F1-TW — GH2-F1-TW basket-type strainer — flanged (fine filter)

Approvals: VdS, SVGW
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 3” (DN80) – 6” (DN150)
Connection: Flanged
Features: 1.0 mm filter (fine filter) · Traffic blue RAL5017

Part numbers (3)

Size	Connection	Type	Filter	Part No.
3”/DN80	Flanşlı	PN16	1,0 mm	845962
4”/DN100	Flanşlı	PN16	1,0 mm	845963
6”/DN150	Flanşlı	PN16	1,0 mm	845964

VIKING

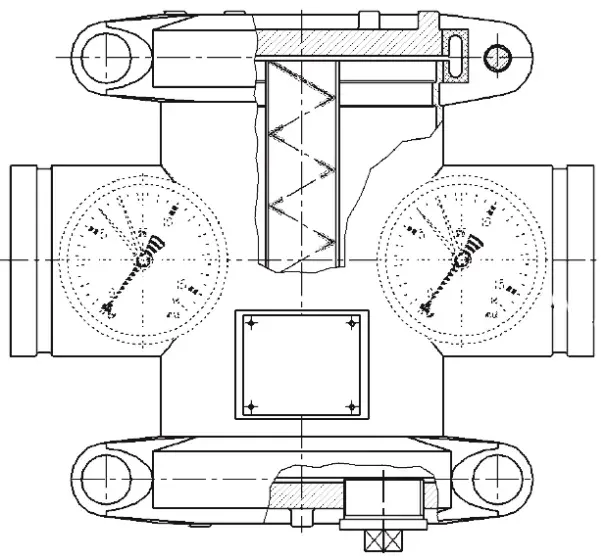

SH-G & SH-F — Basket-type strainer — grooved

Approvals: VdS
Max. working pressure: 16 bar (232 psi)
Material (body): Cast iron
Sizes: 3” (DN80) – 8” (DN200)
Connection: Grooved
Features: 5.6 mm filter (coarse filter) · Hot-dip galvanised

Part numbers (1)

Size	Connection	Diameter	Model	Filter	Part No.
3”/DN80	Yivli	89 mm	SH-G (kalın filtre)	5,6 mm	844653
